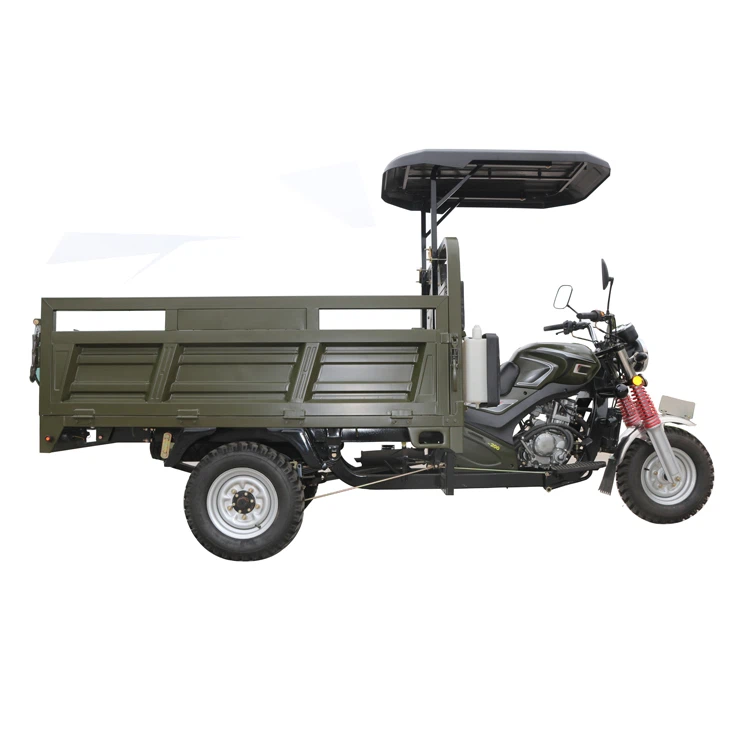

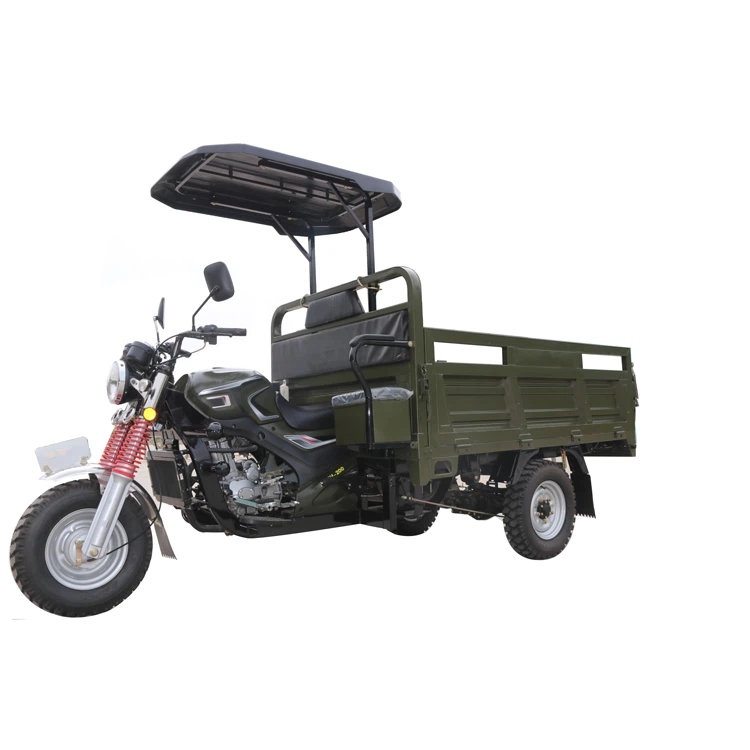

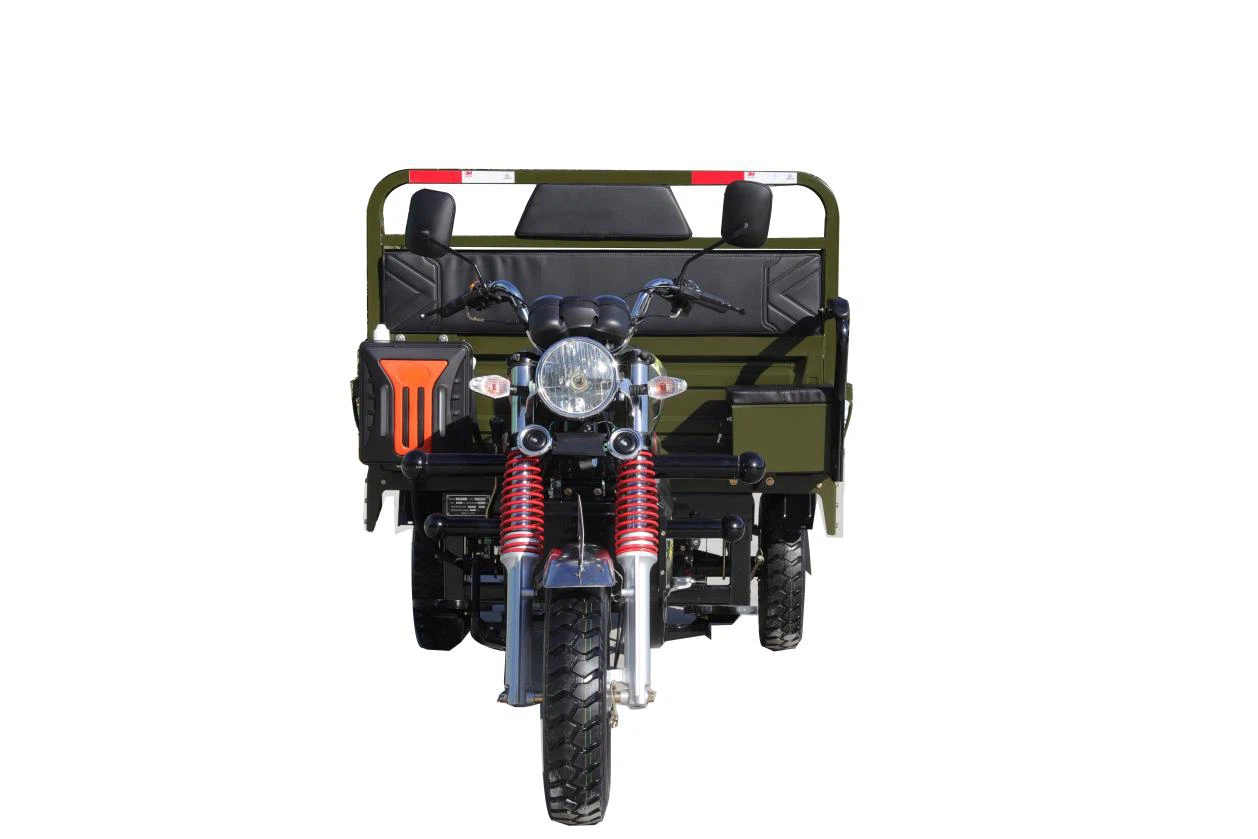

Gasoline Tricycle With Roof

This 175cc gasoline cargo tricycle with roof adopts synchronous double water tank, super large water cooling makes engine work the best performance，The heavy-duty frame design adopts the national standard steel pipe, which has higher toughness, greater strength and is more durable. Integrated forming to widen the front windscreen, more secure protection. Heavy duty carriage plate, with reinforcement bars on both sides, carrying more, more practical. Increase the amount of oil, ensure further endurance, famous zongshen engine, strong power, travel without worry, make life more easy.

Category：

Tel:

E-mail:

Description

PRODUCT DETAILS:

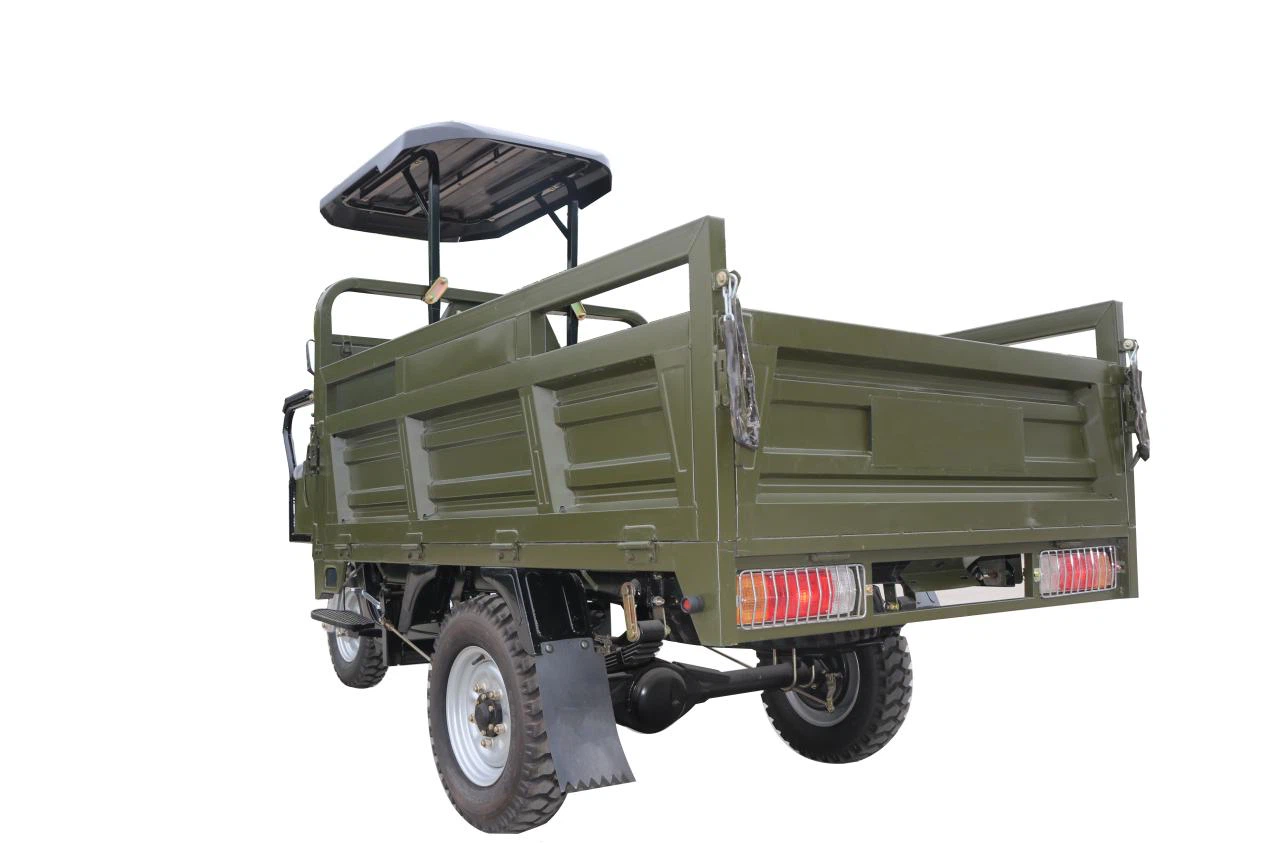

The carriage can be opened by three directions,easily to move goods

Increased auxiliary water box makes the engine work for the best performance

SPECIFICATION:

ITEM	SPECIFICATION
LWH	359014501550mm
WHEELTRACK	1150mm
GROUND CLEARANCE	200mm
KERB WEIGHT	480kg
LOADING CAPACITY	1000kg
CAPACITY OF TANK	20L
FRONT&REAR TYRE	5.00-12
FRONT SHOCK ABSORBER	φ50,INNER/OUTER SPRING,840mm
REAR SHOCK ABSORBER	LEAF SPRING 7PCS 21.6KG
BRAKE TYPE	DRUM BRAKE
MAX.SPEED	63km/h
BATTERY	12v20ah
ENGINE	ZONGSHEN 200 WATER COOLED CG200-A
STARTING TYPE	ELECTRICAL/KICK BY FOOT
ENGINE TYPE	SINGLE CYLINDER,STAND, WATER COOLED,4 STROKES
CYLINDER & STROKE	63.5*62.2mm
DISPLACEMENT	197ml
IGNITION	CFW
TRANSMISSION	SHAFT
MAX.POWER	10.3/7500kw/r/min
MAX.TORQUE	14.2/6000n.m/r/min
GEAR SHIFT TYPE	CYCLE GEAR
CARGO BOX SIZE	2000*1350mm
LOADING QTY/40 HC	40UNITS

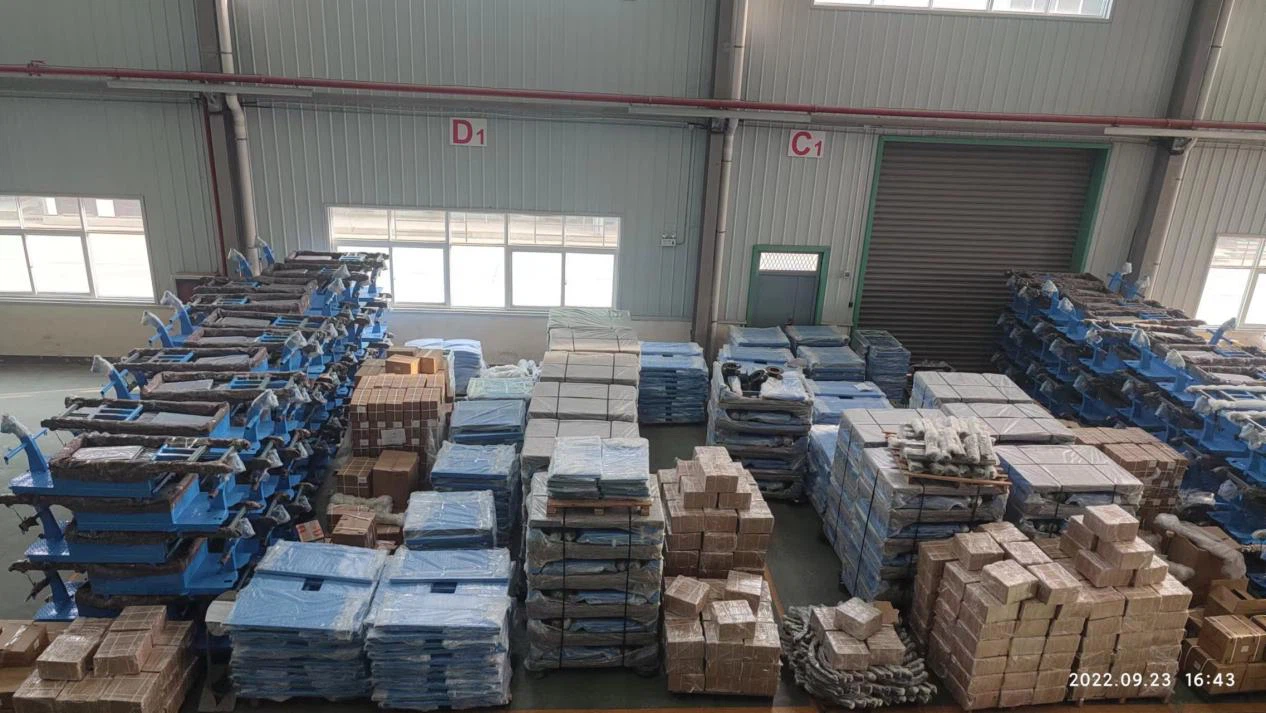

PACKING & SHIPMENT:

Packing,Storage,Handling and Transportation

Shipping: According to customer requirements, most choose to ship by sea.

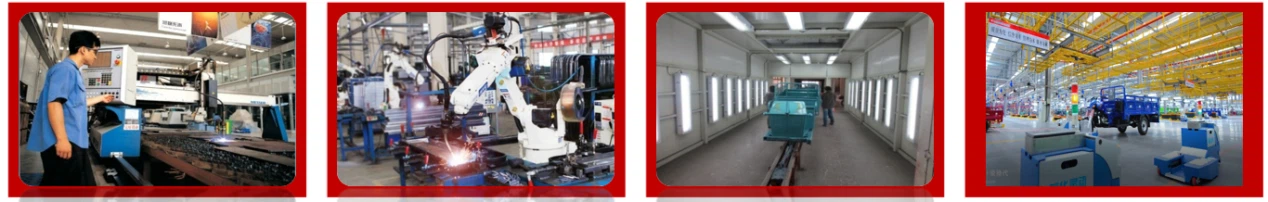

Company Profile:

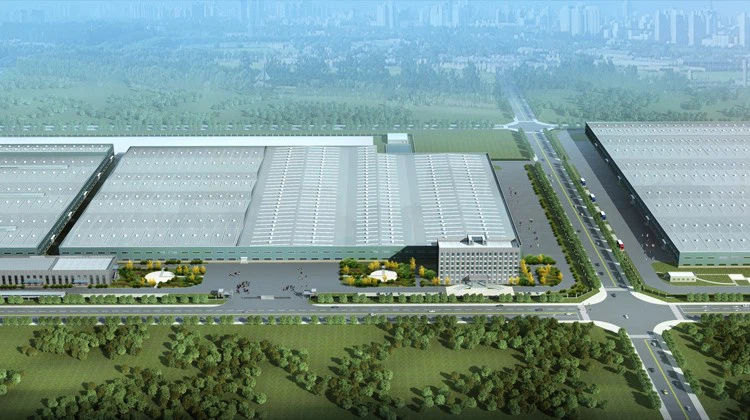

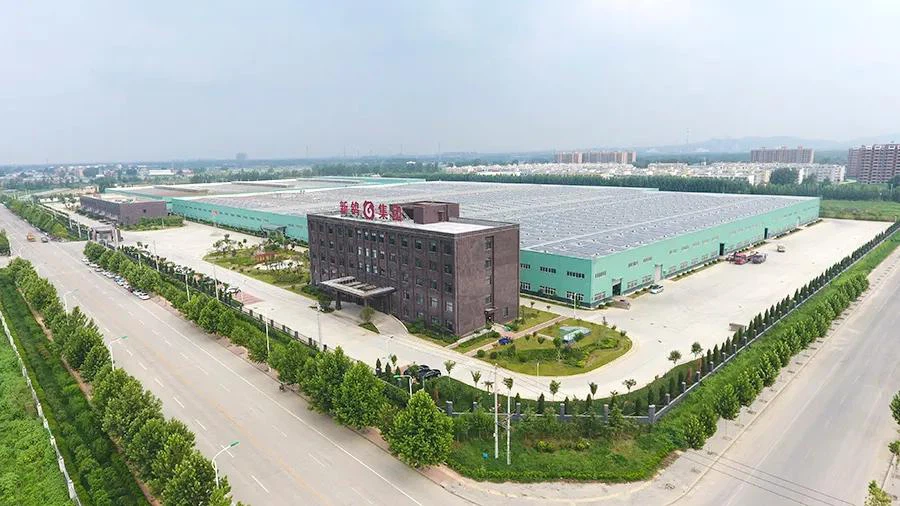

Henan Xinge Motorcycle Co., Ltd. was founded in 1987, focusing on new energy vehicles, three-wheeled motorcycles, three-wheeled electric vehicles and special vehicles.

Xinge vehicles sell well not only in the domestic markets, but also around the world, including India, Pakistan, Bangladesh, Sri Lanka, Nepal, Thailand, Russia, Tanzania , Mexico and so on.
